241577505 Frigidaire Refrigerator Inverter Board

Refrigerator Inverter Board

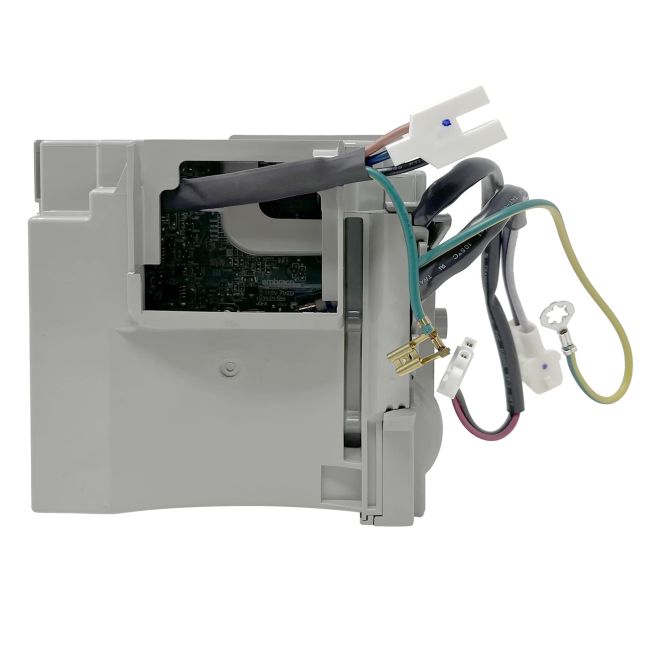

Frigidaire and Electrolux brands offer a range of products, including components for Sears-Kenmore. This specific item is a Frigidaire compressor inverter control board designed for refrigerators. It regulates the refrigerator's cooling by managing the compressor. If your refrigerator is not cooling properly due to a non-functioning compressor, inspect this control board first, as it might be faulty.

Before installing the new part, disconnect the refrigerator from both power and water sources. Consider moving your food to a temporary cooling solution. For this task, you will need a quarter-inch nut driver, a quarter-inch socket wrench, flat wrench, and both Phillips and flat head screwdrivers. Keep a towel nearby to catch any potential water leakage.

This control board is located on the side of the compressor. To access it, remove the bottom panel at the back of the refrigerator. You will also need to remove other components like the water inlet line. The control board is secured with a single Phillips screw. After removing the screw, disconnect the wire harnesses and the plug connecting the control board to the compressor, as well as the ground wire. Be cautious of surrounding tubes and wires when removing the old board. Install the new board by reversing these steps.

This genuine OEM part is compatible with refrigerators from Frigidaire brands, including Electrolux, Gibson, Kelvinator, Westinghouse, and others. No additional parts or hardware are included.
