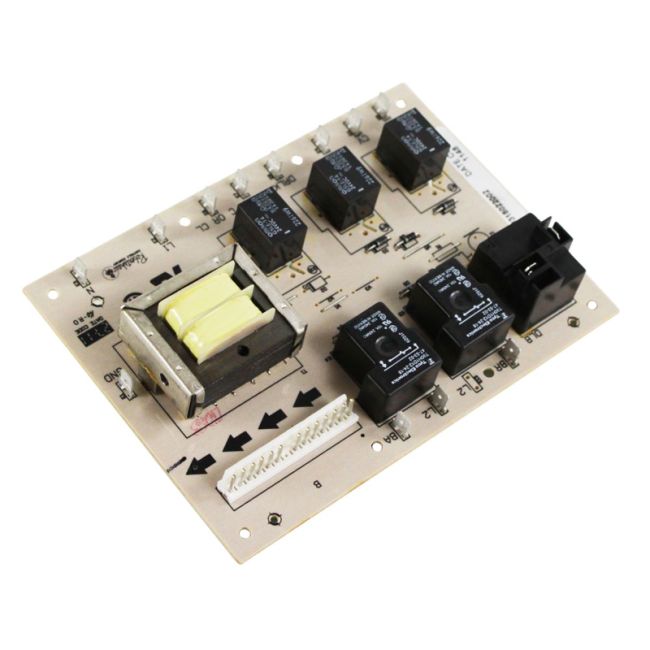

318022002 Frigidaire Upper Oven Relay Board with Transformer for Range/Stove/Oven

Upper Oven Relay Board with Transformer for Range/Stove/Oven

This part addresses issues where the oven generates little or no heat during baking. It is compatible with Frigidaire and Electrolux products, as well as models made by Frigidaire for Sears-Kenmore. Specifically designed for double-oven wall units, this relay control board communicates with the main control board to manage the oven's power.

The relay board activates when you press the power button or set the cooking timer. If it malfunctions or short circuits, the baking and broiling functions may be compromised. In some cases, a complete relay board failure will prevent the oven from powering on. A short circuit can cause the oven to power on and off unpredictably.

To install this part, you must remove the wall oven from its position. After accessing the back of the oven, remove the back panel. The relay control board is located near the bottom, close to the utility drawer. Disconnect the wires and release the mounting clips to remove the old board. Install the new board by connecting the cables and securing the back panel. Test the oven to ensure it functions properly before reinstalling it in the wall.

This is a genuine OEM part, sourced directly from the manufacturer, and is only compatible with Frigidaire wall ovens.
