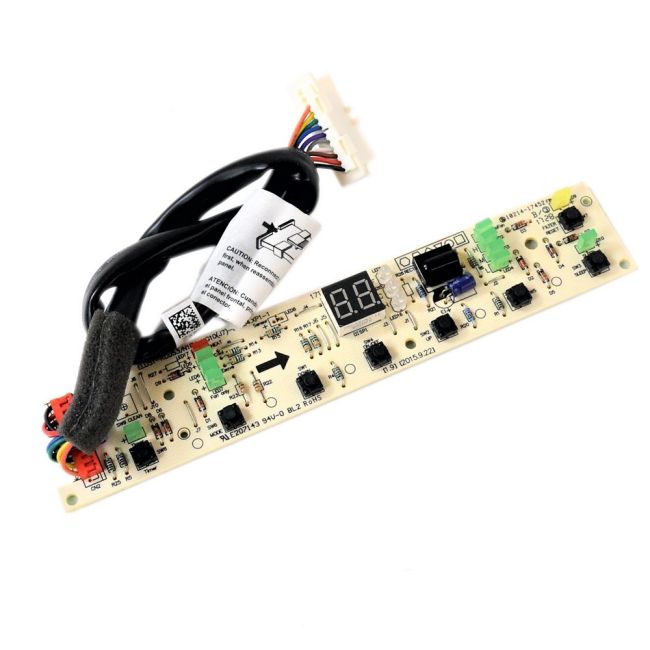

5304496261 Frigidaire User Control and Display Board for Air Conditioners

User Control and Display Board for Air Conditioners

Frigidaire and Electrolux products include components for Sears-Kenmore appliances. Control boards, also called display or user interface boards, are integral to managing the functions of various electronics, including appliances. This particular control board is intended for window unit air conditioners to display the emitted air temperature. It is sold individually and measures approximately 7.3 inches in length, featuring a 24-pin connector for attachment.

If your air conditioner displays error codes, fails to turn on or off, or exhibits unusual behavior, the control board might be the issue. Testing the control board with a multimeter for continuity or inspecting it for burns can help determine if it is functioning correctly.

The control board is typically located within the user interface/display panel at the front of the air conditioner. Accessing it usually requires a screwdriver or wrench. To replace the control board, first disconnect the power. Refer to the user manual to locate the control board, and take pictures of any wiring harnesses for future reference. Replacing the control board involves disconnecting the old one and installing the new one.
