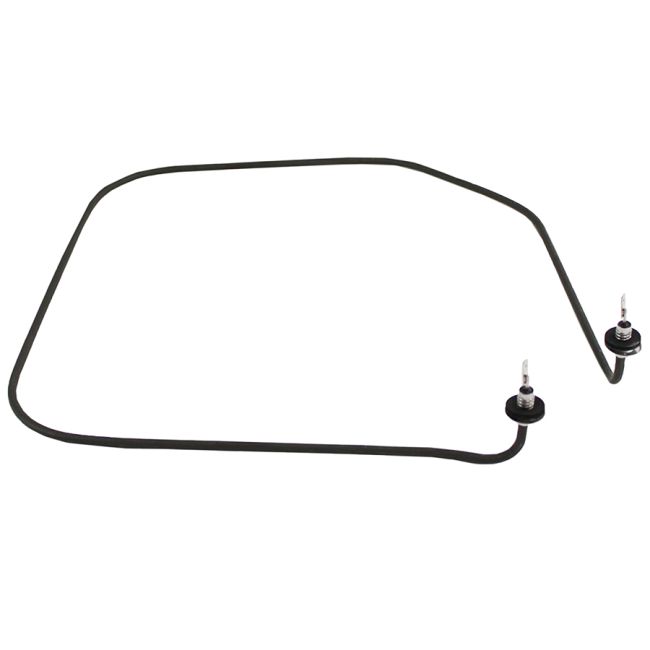

WD05X10009 General Electric Heating Element Assembly

The Heating Element Assembly is situated at the bottom of the dishwasher and is crucial for maintaining the water temperature necessary for both cleaning and drying dishes effectively. If your dishwasher fails to clean or dry dishes adequately, this component might be at fault.

This assembly is a genuine OEM (Original Equipment Manufacturer) part designed specifically for GE dishwashers, which also encompasses brands like Hotpoint, RCA, and some Kenmore models. It plays a key role in producing the heat required during the dishwasher's drying cycle to ensure dishes come out dry and free from moisture.

The structure of the dishwasher heating element assembly generally includes a resistive heating element encased in a protective sheath. This design helps safeguard the element from damage and corrosion, which could otherwise impair its functionality.

Common reasons for the heating element's failure include normal wear and tear, electrical issues, short circuits, or damage from water and corrosion affecting the protective sheathing.

Indications of a malfunctioning heating element in your dishwasher may include dishes that remain wet or damp after the drying cycle, difficulties in drying plastics and other materials that hold moisture, or an unusual amount of condensation or water accumulation inside the dishwasher.
