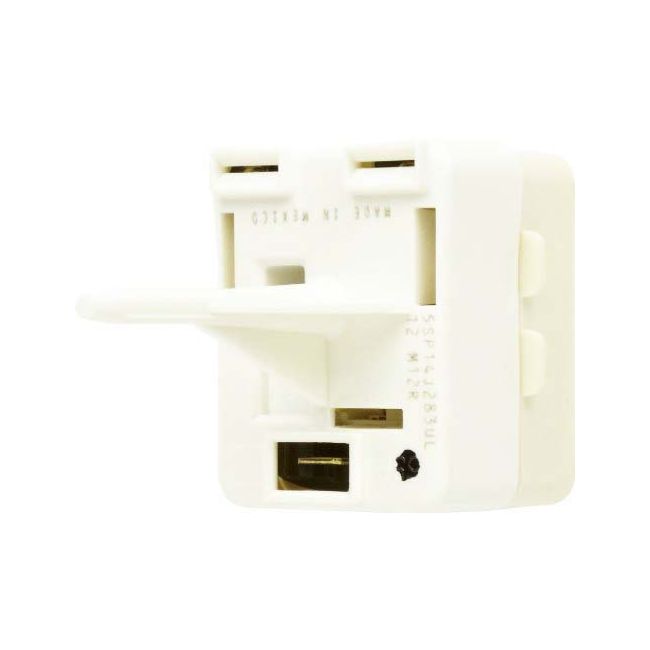

WR09X10106 General Electric Refrigerator 5 Speed Compressor Start Device

Refrigerator 5 Speed Compressor Start Device

This component serves as a safeguard for your refrigerator's motor, preventing it from overheating and facilitating the starting process if the refrigerator fails to power up. It is compatible with various GE products, including Hotpoint, General Electric, and Sears-Kenmore brands. Specifically, this original equipment manufacturer (OEM) replacement part combines a compressor overload and start relay suitable for certain GE refrigerator models. It features a start capacitor and an overload protector that enhance the motor's torque to initiate compressor operation. The relay automatically disengages when the compressor attains its normal speed, while the overload function cuts power to prevent the compressor from overheating if temperatures rise excessively.

The installation of this part involves connecting three pins on the underside of the compressor and attaching two wires on the top. Although the installation process is straightforward, always ensure the refrigerator is unplugged before starting. No special tools are necessary for installation.

Indications that you might need to replace the Compressor Overload and Start Relay include:
- The refrigerator is not cooling efficiently or at all.
- There are unusual clicking noises emanating from the refrigerator's rear.
- The compressor attempts to start repeatedly but is unsuccessful.

This overload and relay setup is suitable for select models from GE and Hotpoint.
