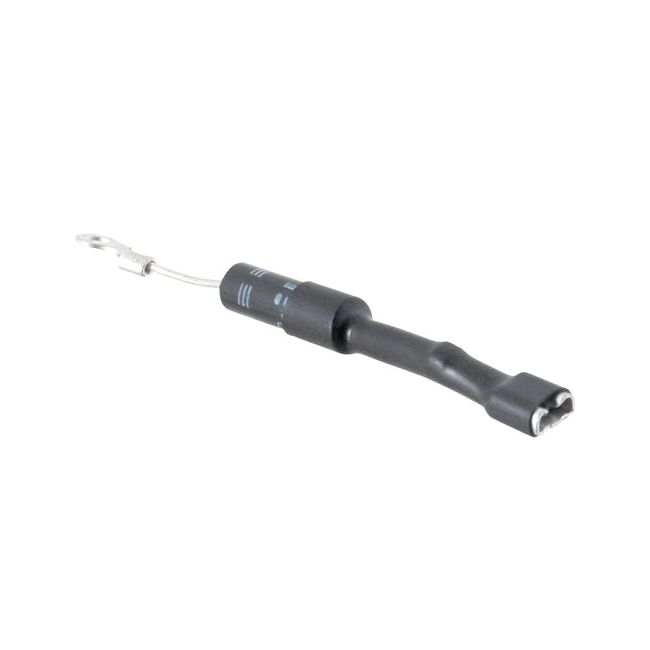

WPR9800486 Whirlpool Microwave Sleeve Diode

The Microwave Black Sleeve Diode is a standard OEM part from Whirlpool, compatible with various brands including Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, Admiral, and also fits appliances sold under Sears-Kenmore and Ikea. This diode plays a crucial role in the microwave by managing the high-voltage electricity necessary for its operation. Positioned in the microwave's high-voltage circuit, it connects to the magnetron and capacitor among other components. Its primary function is to ensure that electricity only flows in one direction, effectively transforming alternating current (AC) into direct current (DC). This process is vital as it powers the magnetron to produce the microwave radiation needed for cooking and heating food.

Additionally, this Whirlpool diode is suitable for use in appliances across other brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears.

A common issue this part addresses is the absence of heat in the microwave, indicating a potential failure in the diode which requires replacement to restore functionality.
