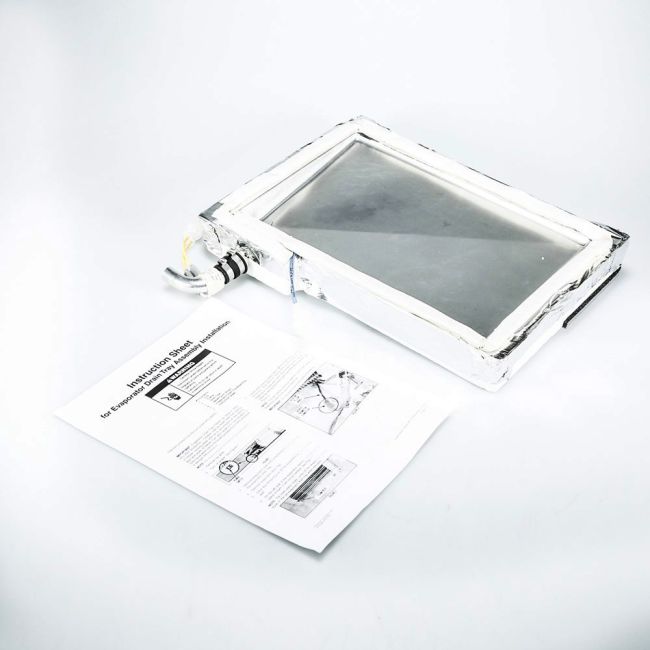

W10199913 Whirlpool Refrigerator Evaporator Drain Tray Assembly

Refrigerator Evaporator Drain Tray Assembly

Whirlpool produces a range of brands, including Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. Additionally, Whirlpool manufactures products for Sears-Kenmore and Ikea. This specific item is a Whirlpool refrigerator drip pan designed for the evaporator. Its purpose is to collect water resulting from defrosting or condensation. A damaged or clogged drip pan can cause water to leak beneath the appliance. If significant leaks occur, an inspection is necessary. The primary reasons for such leaks are usually a worn-out door seal leading to ice melting or issues with the drip pan itself. Check the drip pan to determine if it is merely clogged, which can be easily fixed. If there are cracks or severe damage, a replacement is required.

To access the drip pan, remove the refrigerator's bottom vent. The drip pan is connected to the evaporator. For safety, unplug the refrigerator before starting any repairs. Use a wrench to unscrew the nut that secures the line between the evaporator and the drip pan. Replace the old drip pan with the new one, ensuring the nut is tightened properly for a secure connection.

This drip pan is compatible with Whirlpool, Admiral, Magic Chef, Jenn-Air, and KitchenAid appliances. It is a genuine OEM product sourced directly from the original manufacturer.
