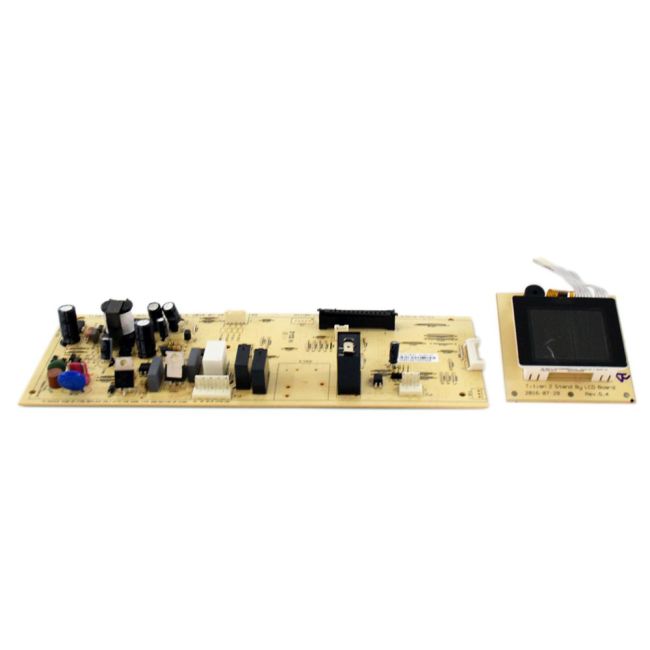

W11100597 Whirlpool Microwave Electric Control

Microwave Electric Control Overview.

Whirlpool's product range includes several well-known brands such as Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. Additionally, Whirlpool manufactures components for products sold under the Sears-Kenmore and Ikea brands. The Control Board, a genuine OEM (Original Equipment Manufacturer) part, is crucial for both built-in and countertop microwaves from Whirlpool. It serves as the central unit of the appliance, equipped with electronic modules, circuits, and components necessary for executing various cooking functions and adjusting power settings.

The malfunction of a control board can result from physical damage affecting circuit connections or from failures in the moisture-sensitive surface mount technology, often due to prolonged exposure to steam.

Common indicators of a faulty control board are:

- The microwave failing to turn on or unresponsive controls
- Inconsistent cooking results due to sensor and timer issues
- Display of diagnostic error messages related to the control circuitry
- Occurrence of arcing or sparks inside the unit caused by electrical shorts

This replacement control board from Whirlpool is also suitable for use in models from KitchenAid, Jenn-Air, Admiral, Norge, and some Kenmore models.
