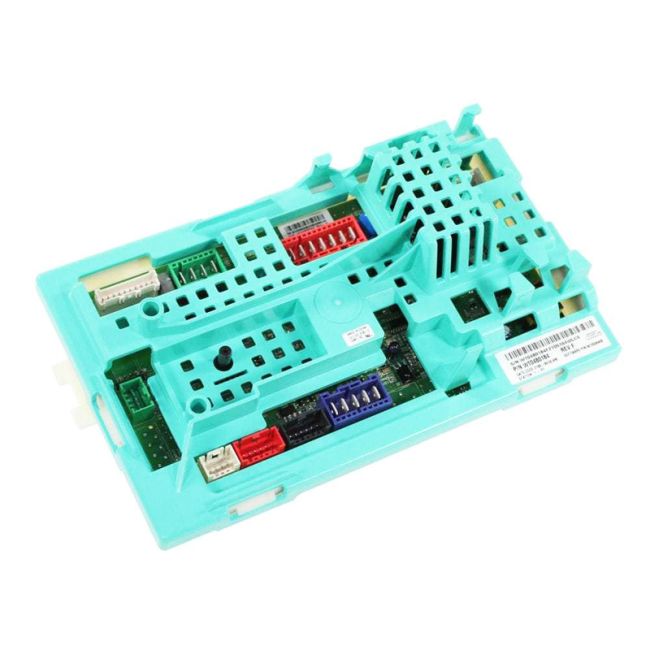

W10480184 Whirlpool Washer Electronic Control Board

The Washer Electronic Control Board is a key component in washing machines, responsible for managing the appliance's primary functions. This part is crucial for regulating settings such as water fill, spin cycles, and drainage. If your washing machine is experiencing issues with these operations, it may be time to replace the control board.

Whirlpool manufactures a range of products under various brand names, including Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. Additionally, Whirlpool produces items for Sears-Kenmore and Ikea. This control board is compatible with washers from all these brands.

Replacing the control board is straightforward. Begin by moving the washer forward to access the back panel. Remove the upper back panel, then use a putty knife to pry up the front of the control panel, detaching it from the mounting brackets. Disconnect all wires from the old control board, noting their positions with a photo. Next, disconnect the air hose, remove the mounting screws, and release the locking tabs to remove the old board.

To install the new control board, position it in place and secure it with the locking tabs. Reconnect the air hose and wires, ensuring they are correctly positioned as per your reference photo. This genuine control board ensures compatibility with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washers.
