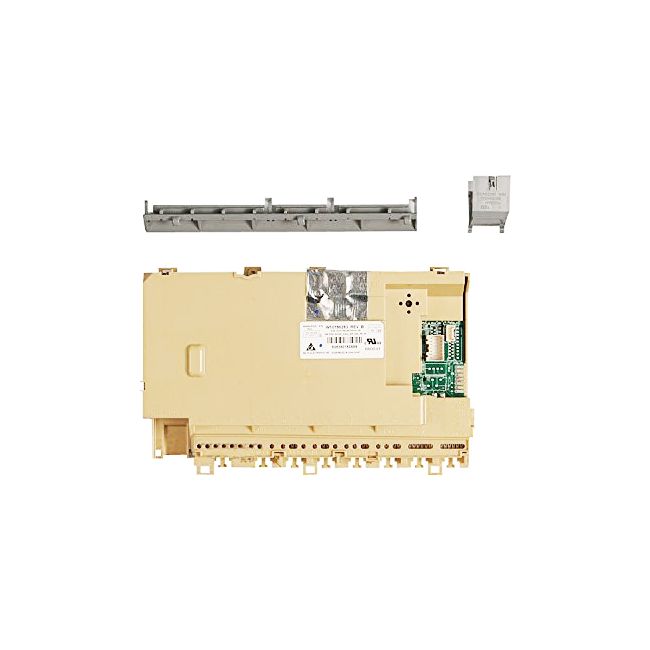

W10813313 Whirlpool Dishwasher Main Electronic Control Board

Dishwasher Main Electronic Control Board

Whirlpool manufactures products under several brands, including Whirlpool, Amana, KitchenAid, Maytag, Jenn-Air, Magic Chef, Roper, and Admiral. They also produce items for Sears-Kenmore and Ikea. This genuine replacement part is a control board designed for Whirlpool dishwashers. The control board manages the primary functions of the dishwasher. If your dishwasher stops turning on or fails to drain correctly, it may be time to replace the control board. Fortunately, this process is straightforward.

To replace the control board, start by removing the outer door panel. Unthread the mounting screws, lift the control panel, and disconnect the wire touchpad harness from the control board. Use a flathead screwdriver to release the locking tab and slide the control board housing to the left. Remove the wire covers and note the orientation of the wire connectors before disconnecting them from the old board.

Next, install the new control board by reconnecting the wire connectors to the appropriate terminals. Align the wire covers and snap them into place. Insert the control board housing tabs into the slots of the mounting bracket and slide the housing to the right to secure it. Reinstall the control panel by attaching the control pad wire harness to the new board. Align the panel and rethread the mounting screws to secure it.

This replacement control board is compatible with Whirlpool brands, including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore dishwashers.
