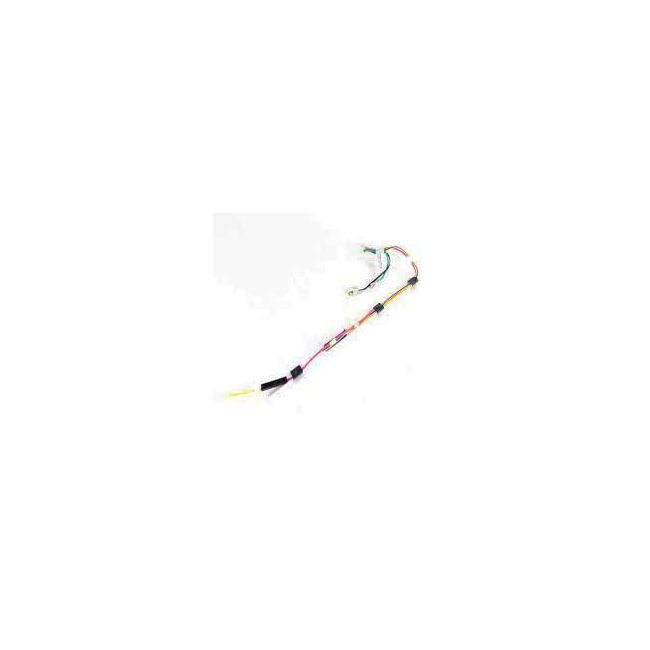

W11204566 Whirlpool Wire Harness

The Wire Harness is an essential component in various Whirlpool refrigerators, ensuring the transmission of power and signals among the electronic control boards and internal parts. This OEM (Original Equipment Manufacturer) part is compatible with several brands under the Whirlpool umbrella, including KitchenAid, Jenn-Air, and Kenmore, as well as models from Amana, Maytag, Magic Chef, Roper, and Admiral. Additionally, Whirlpool manufactures compatible parts for Sears-Kenmore and Ikea products.

A malfunctioning wire harness may manifest through several indicators, such as sporadic or total failures of refrigerator components. This can occur when wire insulation deteriorates and exposes electrical connections to moisture. Frequent usage of the refrigerator door can also cause wear and tear on the wires.

The primary causes for wire harness damage include continuous vibration and the repeated bending of wires, particularly at points near hinges. Over time, the edges of shelves can also wear down the wires, leading to further degradation.

Signs of a faulty wire harness include:
- Sudden shutdowns of lights or temperature displays
- Non-functioning ice or water dispensers
- Regular error messages pertaining to certain areas or components
- Buzzing or sparking noises from the areas where the wires are routed

Addressing these issues promptly can prevent more severe damage and ensure the longevity and proper functioning of your refrigerator.
